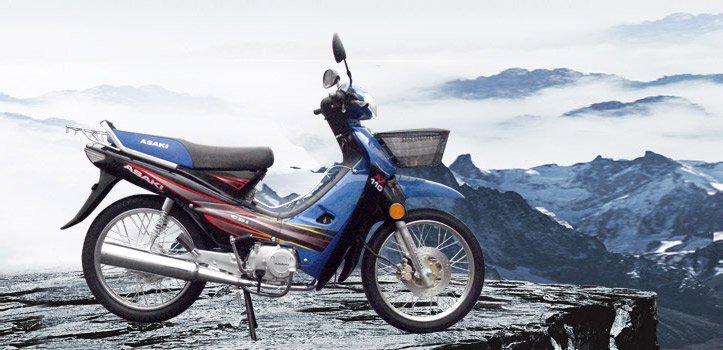

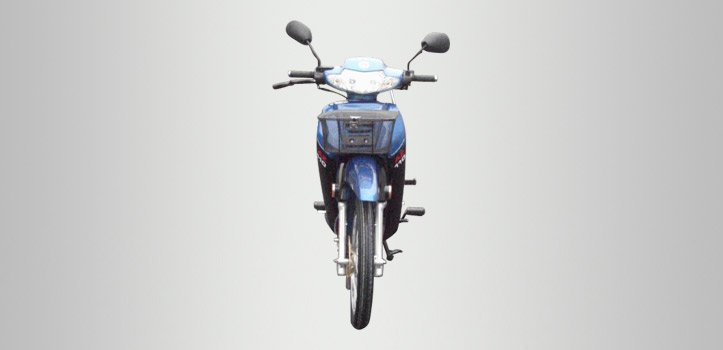

Home >> Product >>Cub >> TIN110 Disc |
|
|
 |
| |
| |
| |
|
|
|
Color

Parameter
|
Engine
|
Single Cylinder, 4-stroke, Air Cooling Engine
|
|
Displacement
|
100cc
|
|
|
Max Power
|
4.4kw/7500±375r/min
|
|
|
Max Torque
|
5.5N·m/5000±250r/min
|
|
|
Compression Ratio
|
8.5:1
|
|
|
Ignition
|
CDI
|
|
|
Start
|
Electric/Kick Start
|
|
|
Transmission
|
4 Speed Manual
|
|
|
Clutch
|
Automatic Clutch
|
|
|
Lubrication
|
Pressure Splash
|
|
|
Dimension
|
1960×690×1140 mm
|
|
|
Wheel Base
|
1310 mm
|
|
|
Weight
|
93kg
|
|
|
Max Load Capacity
|
150kg
|
|
|
Max Speed
|
75km/h
|
|
|
Tyres
|
Front 2.50-17, Rear Drum 2.75-17
|
|
|
Brakes
|
Front Disc, Rear Drum
|
|
|
Battery
|
12V 5A·h
|
|
|
turning radius
|
1740mm
|
|
|
Ground distance
|
125mm
|
|
|
head lighting
|
12V35/35W
|
|
|
tail lamp
|
12V21/5W
|
|
|
direction indicator lamp
|
12V10W
|
|
|
Front shock absorber
|
Spring hydraulic
|
|
|
Rear shock absorber
|
Spring hydraulic
|
|
|
Fuel tank
|
3.2L
|
|
|
Lubricating oil volume
|
0.8L
|
|
|
|
|
|
|
Loading Information
|
Capacidad
|
|
|
|
|
|
|
20′
|
40′GP
|
40′HQ
|
|
|
|
|
|
CBU
|
|
|
105
|
|
|
|
|
|
CKD
|
|
|
173
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
